Stainless steel storage tanks are widely used in food dairy, chemical, pharmaceutical, light industry, water treatment, transport storage and other process areas. The storage tanks are well sealed, the hermetic design prevents the invasion of harmful substances in the air into the tanks and the water quality is not polluted by the outside world. Designed in accordance with sanitary requirements, the structure design is extremely humane, easy to operate and the storage tank is hygienic. The inner surface of the tank is mirror polished (roughness Ra≤0.4μm), and the inlet and outlet ports, sight glasses, manholes and other process openings are welded to the tank body with a rounded transition using a stretching and flanging process, which is smooth and easy to clean, making the production process reliable and stable.
|
Products Name |

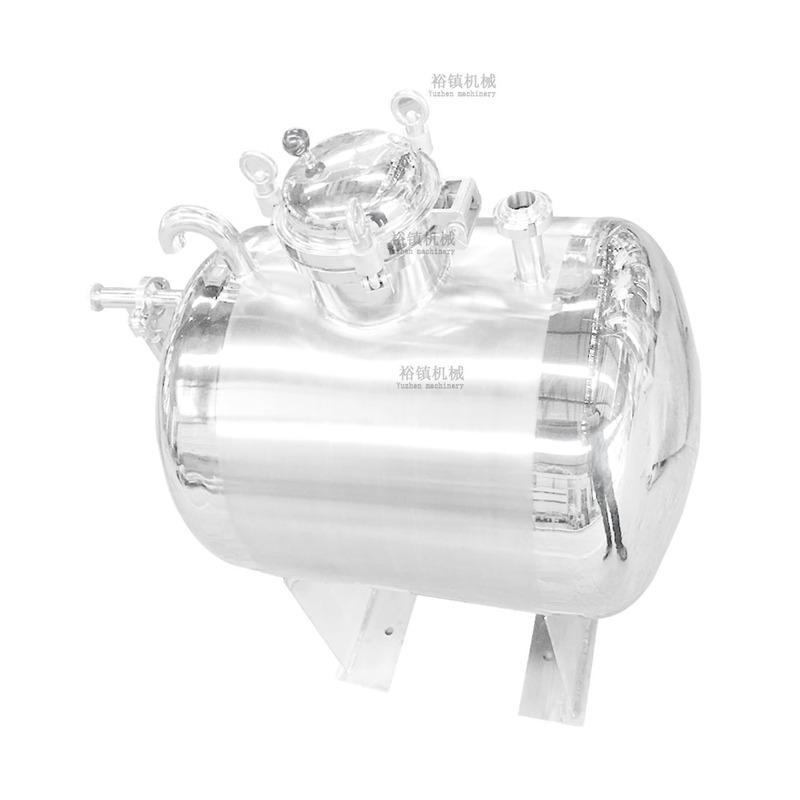

Customized High Containment Stainless Steel Pressure Liquid Pharmaceutical Storage Tanks |
|
Material |
SS304/SS316L |
|
Jacket: full jacket ,dimple jacket , coil tube |
|
|
Insulation layer: PU / rockwool |
|
|
as to the thickness, we can make it according to your requirement. |
|
|
Description: |
Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries |
|
Heating mothed: |
By electricity (oils or water), by steam , circulation heating (hot water or oil) |
|
Configuration: |
1.manhole |
|
2.CIP spraying ball |
|
|
3.adjusting feet |
|
|
4.sight glass |
|
|
5.temperature gauge |
|
|
6.pressure gauge / vacuum gauge |
|
|
7.breather |
|
|
Capacity: |
50L-10000L |
|
Mixer Type: |
High shear Homogenizer or Agitator ( anchor , frame , stirrer with side scraper , blade ,impeller ) |
|
Mechanical seal: |
SIC/SiC/EPDM(Standard) |
|
Agitator power: |
0.55kw -75KW |
|
Sealing option: |
Sanitary single mechanical seal/Double mechanical seal with cooling system |
|
Voltage: |
220V -480V |
|
Motor: |
ABB, SIEMENS , SEW , Domestic |
|
Surface treatment: |
Inner polished and outside polished |
|
Availably connection: |
Clamp, Thread Butt weld, Flange |
|
Availably standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
|
Operated: |
Electic |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Export Plywood case |
|
Delivery details: |
Usually within 25-30 days after receiving T/T down payment |
