Horizontal Industrial Gas Cryogenic Stainless Steel LNG Storage Tank
|
LNG Tank Specification ASME GB150 Stainless Steel Vertical LNG Storage Tank for sale |
||||
|
Related Rules & Standards A. ASME Standard B.GB150 Standard: 1. TSG 21-2016 < Fixed rules of the safety technique pressure vessels> 2. GB150.1~150.4-2011< Pressure vessels> 3. GB/T 18442.1-18442.6< Stationary vacuum insulated cryogenic pressure vessels> 4. NB/T47014-2011 5. NB/T 47015-2011 6. JB/T4730-2005 |
||||
|
NO. |
Model |
Outline Size |
Net Weight(KG) |
Type |
|
1 |
CFW-5/0.8 |
Φ1916*4572 |
3950 |
Horizontal
|
|
2 |
CFW-10/0.8 |
Φ2316*5398 |
6050 |
|
|
3 |
CFW-15/0.8 |
Φ2316*7258 |
7845 |
|
|
4 |
CFW-20/0.8 |
Φ2416*864546 |
9480 |
|
|
5 |
CFW-30/0.8 |
Φ2916*8289 |
12800 |
|
|
6 |
CFW-50/0.8 |
Φ2916*12729 |
19160 |
|
|
7 |
CFW-60/0.8 |
Φ2916*14929 |
21760 |
|
|
8 |
CFW-100/0.8 |
Φ3424*16442 |
38460 |
|
|
9 |
CFW-120/0.8 |
Φ3424*5926 |
44200 |
|
|
10 |
CFW-150/0.8 |
Φ3824*19426 |
50945 |
|
LNG Tank is a fixed vacuum powder insulated cryogenic tank with double-layer cylindrical structure. The inner container is used to store low temperature liquid natural gas. The shell forms and protects the vacuum insulation space. The sandwich is filled with pearlite sand and pumped into a vacuum state to form a good adiabatic system. The design of the shell and support system can withstand the relevant external forces produced during manufacture, transportation, installation and use. The bottom of the tank is provided with a complete set of valves, meters and safety devices for operation.

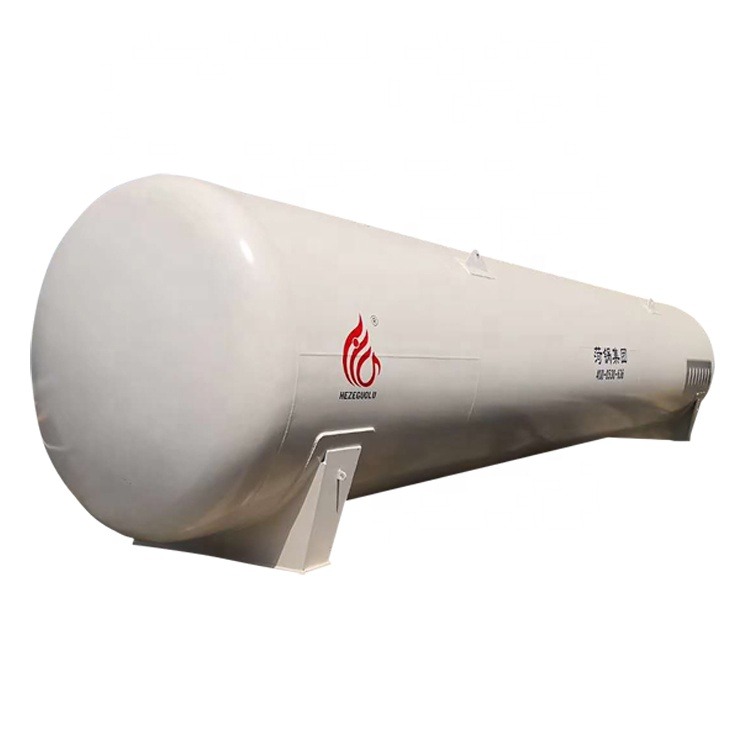

Cryogenic stainless steel 20m3 8 bar horizontal LNG storage tank
Shandong Zhongjie Pressure Equipment Co., Ltd (Formerly Heze Boiler Factory Co., Ltd) was founded in 1984. After more than 30 years of development, the company has become a professional equipment manufacturer with four major product segments: pressure vessel, industrial boiler, central air conditioner and engineering installation with integrated R&D, design, production, installation, commissioning and technical services. Our factory is located in the High-tech Development Zone of Heze City, Shandong Province. It has a research and development design center and three production bases. It covers an area of 200,000 square meters and has more than 750 employees, of which engineering and technical personnel account for more than 20%. Our company's leading products are: industrial and civil biomass boilers, fuel gas boilers, organic heat carrier boilers, waste heat recovery boilers, refrigeration auxiliary machines and first, second and third types of pressure vessels, heat exchangers, ground source heat pump units,etc.
1. Q: Are you a factory or trading company?
A: We are a leading manufacturer of pressure vessels,including lpg storage tank, LNG storage tank, cryogenic vacuum insulated storage tank, liquid ammonia tank, skid mounted lpg filling stations,and spare parts with more than 30 years experiences. We are the largest production base of lpg storage tank in China now, sincerely welcome to visit our factory.
2. Q: Could you customize exactly according to my requirements ?
A: Yes. OEM is available. We have professional R&D team, we can produce the product exactly according to your requirements.
3. Q:What service can I get from you?
A: We can offer complete solutions integrated with design, manufacturing, installation, inspection and maintenance at competitive prices. And We provide lifelong tracking service and one year free warranty for all of our products. we also provide training and technical support to guide you install and commission your product.
4. Q: What is the MOQ ?
A: One piece is acceptable, the more the quantity, the more favorable the price.
5. Q: How to transport products?
A:The products can be transported by sea, railway,and motor vehicles, according to users’ demands.
Cryogenic stainless steel 20m3 8 bar horizontal LNG storage tank
