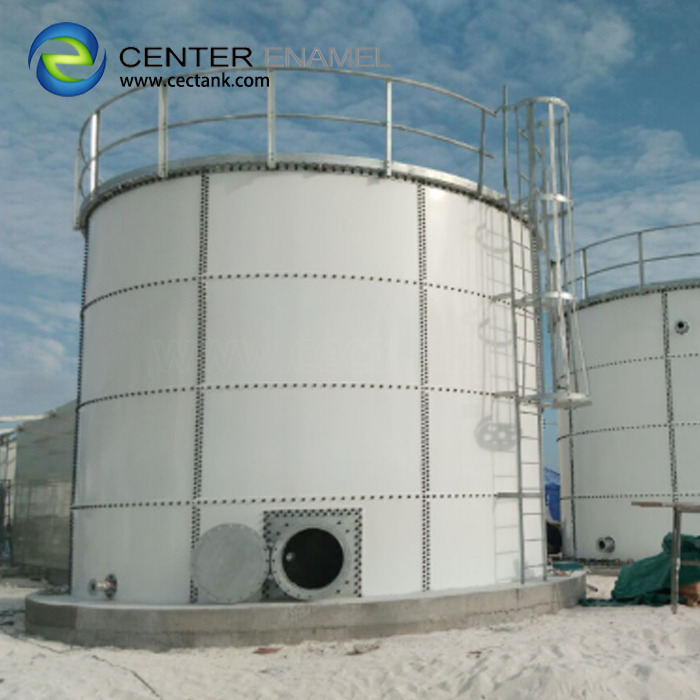

Water Tower Water Tanks Bolted Steel Tanks
Note: Dear Customer, different volumes of tanks have different prices, please consult our online sales for the quotation of every tank before you place an order. Thank you!
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
Short construction period, cost-effective tank solution
Superior corrosion resistance, service life is more than 30 years
Easy to install, no need for big installation equipment and/or very skilled labors
Tank volume can be easily expanded
It can be dismantled, removed and relocated
Elegant appearance, tank color can be customized
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 45 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Why Choose Center Enamel Glass-Fused-to-Steel Tanks
Cutting edge enameling technology to secure the product performance
The first and most experienced Glass-Fused-to-Steel tanks manufacturer in Asia
Innovative enameling protection on sheet' s four edges and bolt holes
Product meet or exceed AWWA D103-09, OSHA, ISO/EN 28765, NSF61, NFPA etc. international standards
Certified by ISo9001, NSF61, LFGB, BSCI etc. international qualification system
Mature exporting experience with projects reference in more than 60 countries in the world
Quick installation lowest maintenance cost
Quality Control
Raw material test: ingredient analysis, impurities test
Formula finalizing small sample test: enamel fluidity test, chromatic difference analysis, enamel burning experiment acid and alkali resistance test, glossy, adhesion test etc.
Middle stage product test: magnify experiment simulated operation environment
Double-checking is required before packaging, confirm the plate’s code and quality. The steel plates are separated from each other by PE foam, to avoid any damage on the coating surface. And the whole pallet is covered by a plastic film, tied by a steel belt. Then the whole pallet is put inside a wooden box.
