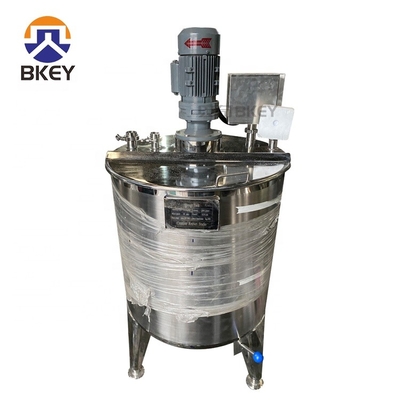

Professional Made 200 Liter Stainless Steel Potable Liquid Juice Storage Tank Water Storage Container
Stainless Steel Tank is widely used in food, dairy, beverage, beer, liquor, chemical, pharmaceutical and bioengineering industry. It can be used as storage tank, mixing tank, etc.
Features:
1. Inner tank body, jacket and outer layer, with thermal insulation material filled in between.
2. Materials are all sanitary stainless steel.
3. User-friendly design ,easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Tank Configuration:
1. Quick open manhole
2. All kinds of CIP cleaning machine
3. Anti-flies respirator
4. Adjustable triangle leg
5. Detachable feeding tube kit
6. Anti-vortex plate
7. Thermometer(optional)
8. Ladder (optional)
9. Liquid level meter & liquid level control(optional)
10. Weighing function can automatically control the balance of ingredient(optional)
11. Side mixer (optional)
12. Jacket(miller board or hollow jacket or coil jacket is optional)
Parameters:
| Volume(L) |
Dimension |
Height | Inlet&Outlet Caliber | Insulating Layer | Motor Power |
| 500 | 840×1000 | 2750 | 38 | 60 | 0.55 |
| 600 | 920×1000 | 2850 | 38 | 60 | 0.55 |
| 700 | 990×1000 | 2850 | 38 | 60 | 0.55 |
| 800 | 950×1220 | 3000 | 38 | 60 | 0.55 |
| 900 | 1010×1220 | 3000 | 38 | 60 | 0.55 |
| 1000 | 1060×1220 | 3150 | 51 | 60 | 0.75 |
| 1500 | 1160×1500 | 3350 | 51 | 60 | 0.75 |
| 2000 | 1340×1500 | 3410 | 51 | 60 | 1.1 |
| 3000 | 1410×2000 | 4000 | 51 | 60 | 1.5 |
| 4000 | 1620×2000 | 4250 | 51 | 60 | 1.5 |
| 5000 | 1810×2000 | 4300 | 51 | 60 | 2.2 |
| 6000 | 1980×2000 | 4550 | 51 | 60 | 2.2 |
| 7000 | 1930×2440 | 5000 | 51 | 60 | 2.2 |
| 8000 | 2060×2440 | 5000 | 51 | 60 | 3 |
| 9000 | 2180×2440 | 5050 | 51 | 60 | 3 |
| 10000 | 2300×2440 | 5050 | 51 | 60 | 3 |
| 12000 | 2270×3000 | 5600 | 51 | 60 | 4 |
| 15000 | 2530×3000 | 5700 | 51 | 60 | 4 |
| 20000 | 2640×3660 | 6400 | 51 | 60 | 5.5 |
NOTE: The product can be customized according to customer requirements. The total height is obtained by basing on the height of the discharge port 800MM. If the height of the outlet is changed, the total height should be adjusted accordingly.
