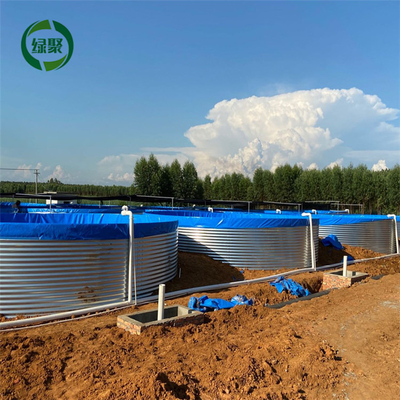

Product Name | Lvju SGCC Steel Water Storage Tank Round Stock Water Tank Pond Galvanized Biofloc Tank | |
Tarpaulin Color | Light Blue/ Custom | |
Tarpaulim GSM | 550gsm / 600gsm / 760gsm | |
Tarpaulin Thickness | 0.45mm / 0.5mm / 0.6mm | |
Service life | About 4 to 10 years | |
Application | Aquaculture Fish farming/Shrimp farming | |
Tarpaulin Features | 1) High tenacity polyester yarns with PVC coating; 2) Laminated technology & Hot-melt Coating technology;3) Good strength, good flexibility and adhesion strength; 4) Outstanding tearing strength for welding; 5) Cold Crack Resistance, Anti-Mildew, Anti-Static treatment, Waterproof, Sunproof; 6) Best color fastness. | |
Galvanized Tank Features | High-density aquaculture tank, circular galvanized sheet support uniform stress point, can reach high water level, can be recycled water culture. Quick and easy installation, clean sewage, wear - resistant, long life etc. Water storage tank is a solid storage system with a unique combination of quality and mechanical strength. The very high tensile strength makes these galvanized corrugated steel water tank irrigation tank biofloc fish tank customized water tanks robust and very suitable for storage applications. The water tanks are modular and based on curved corrugated steel plates. These plates are galvanized at both sides. In combination with different covers and roof systems, the water tank can be composed into a fully closed water storage system for the horticulture, irrigation, especially for fish farming, and aquaponics. | |
Galvanized Tank Benefits | •Developed and manufactured by hot galvanized corrugated steel sheet. •Unique coating on the galvanised Steel tank plate water tanks. •Water silos are durable and environmental friendly. •Water tanks are suitable for water storage in irrigation, algae farming, aquaponics and storage of purification installations and plants. | |
Galvanized Tank Thickness | 1MM | |
Bolts and nuts | High-strength galvanized bolts and nuts. |
No. | Covers area | Capacity | Diameter | Height | N.W. | Packing size | Quantity | CBM |
(Unit) | (㎡) | (Liter) | (m) | (m) | (≈kg/set) | (≈cm/set) | (set/pallet) | (≈m³/pallet) |
1 | 9 | 8,000 | 3 | 1.2 | 93 | 324*120*60 | 33 | 2.33 |
2 | 16 | 15,000 | 4 | 1.2 | 124 | 324*120*60 | 25 | 2.33 |
3 | 25 | 24,000 | 5 | 1.2 | 155 | 324*120*60 | 20 | 2.33 |
4 | 36 | 34,000 | 6 | 1.2 | 186 | 324*120*60 | 17 | 2.33 |
5 | 64 | 60,000 | 8 | 1.2 | 248 | 324*120*60 | 13 | 2.33 |
6 | 100 | 940,00 | 10 | 1.2 | 310 | 324*120*60 | 10 | 2.33 |
7 | 144 | 136,000 | 12 | 1.2 | 372 | 324*120*60 | 8 | 2.33 |
8 | 9 | 10,000 | 3 | 1.45 | 114 | 324*150*65 | 20 | 3.16 |
9 | 16 | 18,000 | 4 | 1.45 | 152 | 324*150*65 | 15 | 3.16 |
10 | 25 | 28,000 | 5 | 1.45 | 304 | 324*150*65 | 8 | 3.16 |
11 | 36 | 41,000 | 6 | 1.45 | 342 | 324*150*65 | 7 | 3.16 |
12 | 64 | 73,000 | 8 | 1.45 | 304 | 324*150*65 | 8 | 3.16 |
12 | 100 | 114,000 | 10 | 1.45 | 380 | 324*150*65 | 6 | 3.16 |
12 | 144 | 164,000 | 12 | 1.45 | 456 | 324*150*65 | 5 | 3.16 |
No. | Capacity (Liter) | Diameter (m) | Height (m) | N.W. (≈kg/pcs) | Packing size (≈cm/pcs) | Package (≈CBM/pcs) |
1 | 3000L | 2 | 1 | 6.8 | 50*23*29 | 0.03 |
2 | 5000L | 2.7 | 1 | 10.4 | 50*23*29 | 0.03 |
3 | 8000L | 3 | 1.2 | 13.4 | 50*40*40 | 0.08 |
4 | 10000L | 3.4 | 1.2 | 16.1 | 50*40*40 | 0.08 |
5 | 12000L | 4 | 1 | 18.8 | 60*40*50 | 0.12 |
6 | 15000L | 4 | 1.2 | 20.5 | 60*40*50 | 0.12 |
7 | 20000L | 4.8 | 1.2 | 27.1 | 60*40*50 | 0.12 |
8 | 30000L | 5.8 | 1.2 | 36.6 | 70*50*50 | 0.18 |
9 | 40000L | 6.5 | 1.2 | 44.0 | 80*50*60 | 0.24 |
No. | Capacity (Liter) | Length (m) | Width (m) | Height (m) | N.W. (≈kg/pcs) | Packing size (≈cm/pcs) | Package (≈CBM/pcs) |
1 | 2000L | 2 | 1 | 1 | 4.8 | 50*23*29 | <DI |
