Home /Products/Welded Steel Tank/Hotels welding stainless steel panel modular sectional water tank 10000 gallon stainless steel water storage tank panel price

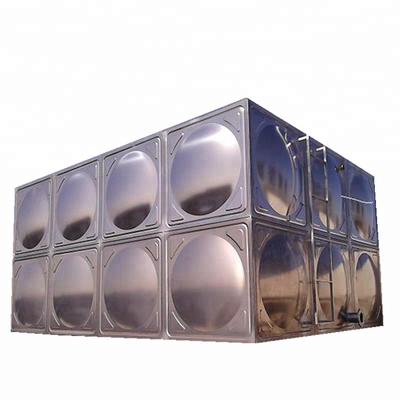

Hotels welding stainless steel panel modular sectional water tank 10000 gallon stainless steel water storage tank panel price

1 Cubic Meter
MOQ
$80.00(1 - 9 Cubic Meters) $70.00(>=10 Cubic Meters)
Price
Hotels welding stainless steel panel modular sectional water tank 10000 gallon stainless steel water storage tank panel price
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Stainless Steel Panel
Material: Stainless Steel
Weight: Customized
Size: Customized
Warranty: 1 Year
Productivity: 50000L/Hour
Weight (KG): 2000 Kg
Color: Silver
Raw Material: SS 304, SS316
Working Time: More Than 20years
Process Technique: Stamping Forming Process
Pccessories: Stainless Steel
Bottom Case: Channel Steel
Foundation: Concerte Base
Panel Size: 1*1m, 1*0.5m, 0.5*0.5m
Panel Thickness: 1.5mm To 3mm
Panel Grade: Food Grade
Basic Infomation
Payment & Shipping Terms
Packaging Details: naked packaging or plywood for stainless steel water tank making machine
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month stainless steel water tank making machine
Product Description
Products Description
Our Advantages

Never Rusted

Imported food-grade SUS304,SUS316, stainless steel,unique anti-rusting performance.

Never Leaked

Unique structure and all-welding operation, excellent strength.

Free Combination

Pattern and capacity can be customized according to actual usage environment, no demanding requirement, especially suitable for upgrading project.

Reasonable Structure

Unique board design and press processing, reasonable inside supporter and high-strength
stainless steel material makes the water tanks have an excellent strength and streamlined
outlook.

Light & Cost-efficient

Adopting 1-3.0mm stainless steel panel, significantly reduce the weight of the water tanks,
make it more cost-efficient.

APPLICATION
1. Potable Water Storage Tanks
2. Agricultural Irrigation Tanks
3. Septic Tanks and Sewage Tanks
4. Distillation and Process Tanks
5. Fire Reserve Storage Tanks,Swimming Pool Balance Tanks
6. Hot Water Storage Tanks and Chemical Substance Storage Tanks
7. Rain Water Harvesting Tanks,Well Water Tanks,Sea Water Tanks
8. Reverse-Osmosis Water Tanks(water with high or low conductivity)
9. Industrial Process Tanks,Chiller Water Tanks,Cooling Tower Water Tanks
Product Structure
Raw material
stainless steel sheet SS304-2B, SS316L
Panel size
1000*1000, 1000*500, 500*500(mm)
Panel thickness
1.5mm, 2mm, 2.5mm, 3mm, 4mm
Process technique
Ramming craft
Accessories
Tiepiece, support, flange/socket, ladder, angle iron, water gauge,welding stick
Foundation
Concrete foundation and U-steel bottom base
Connection type
Argon arc welding
Life time
more than 10 years
Product Paramenters
Physical properties
Standard requirement
Result
Tensile strength
≥515 MPa
695 MPa
Yield strength
≥205 MPa
309 MPa
Elongation
≥40%
54%
Hardness
≤92HRBS
85HRBS
Tank Height(mm)
Thickness of each panel
Bottom
1st layer
2nd layer
3rd layer
4th layer
5th layer
Roof
1000
2.5mm
1.5mm
/
/
/
/
1.5mm
1500
2.5mm
1.5mm
1.5mm
/
/
/
2000
2.5mm
2mm
1.5mm
/
/
/
2500
3mm
2.5mm
2mm
1.5mm
/
/
3000
3mm
2.5mm
2mm
1.5mm
/
/
3500
3mm
2.5mm
2.5mm
2mm
1.5mm
/
4000
3mm
2.5mm
2.5mm
2mm
1.5mm
/
4500
4mm
3mm
3mm
2.5mm
2mm
1.5mm
5000
4mm
3mm
3mm
2.5mm
2mm
1.5mm
The standard tolerance of thickness is 0.25mm. For example, the actual thickness of 3mm is 2.75mm.
Accessories show


1. According to SS welding connection water tank capacity,our engineer will provide detailed drawing for your reference.


2. Customers just need to provide concrete base according to our drawing.


3. Our water tank quotation includes all panels and accessories and C-channel base and some spare parts.
